Private projects

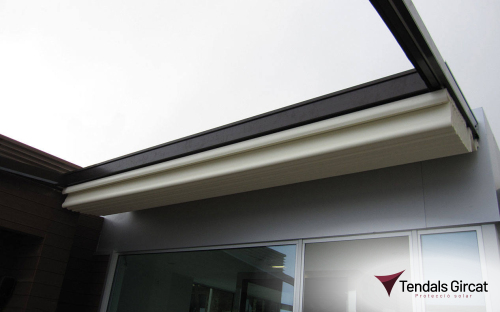

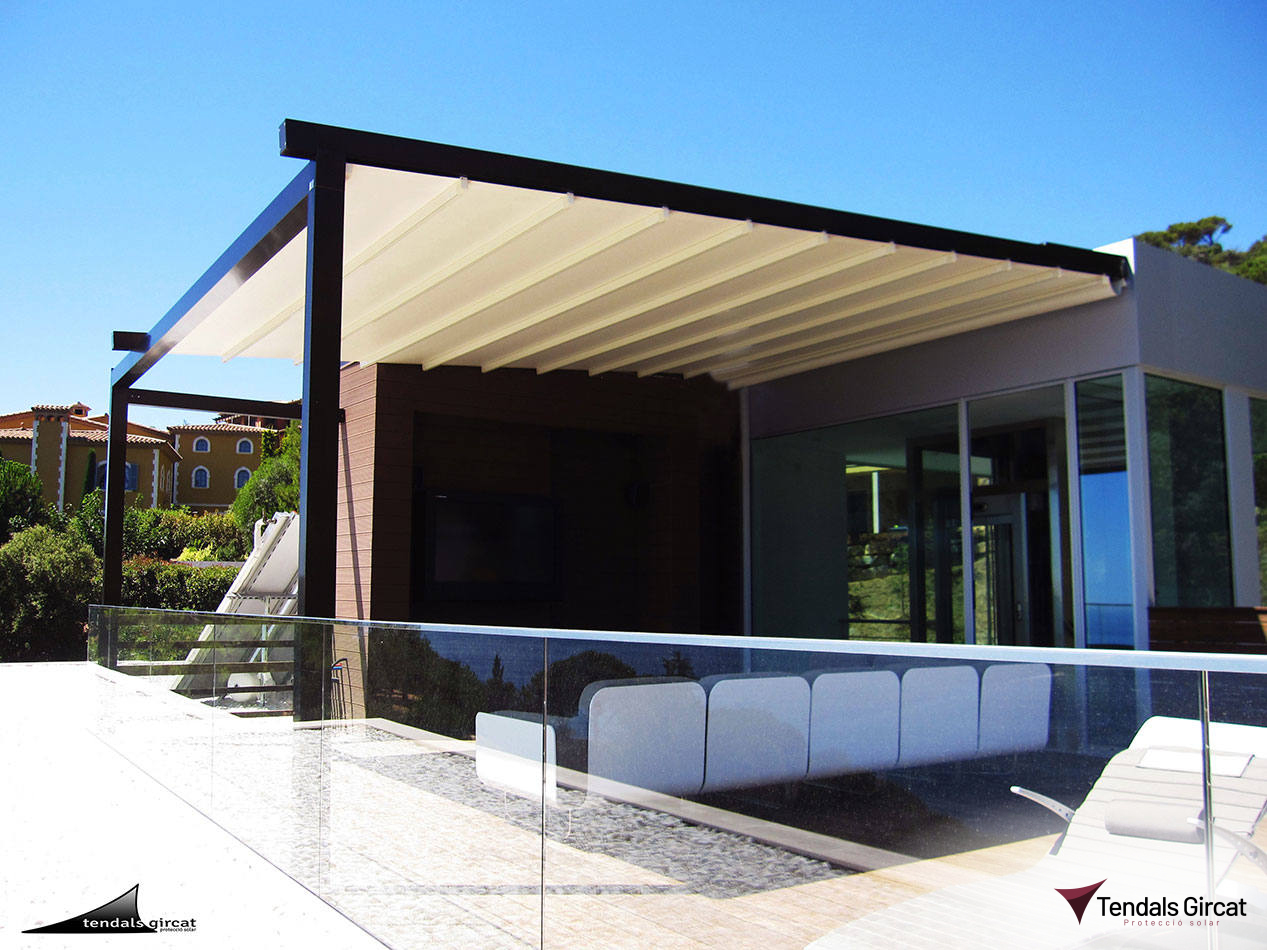

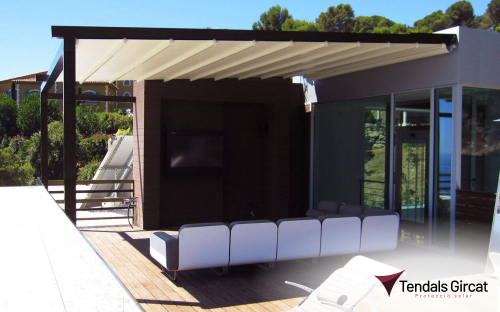

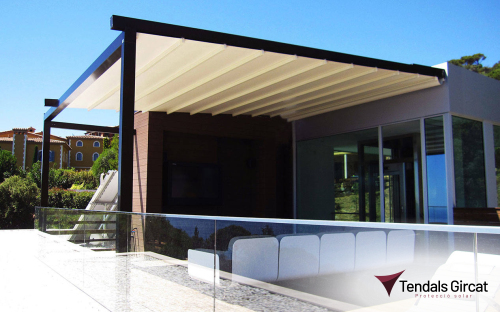

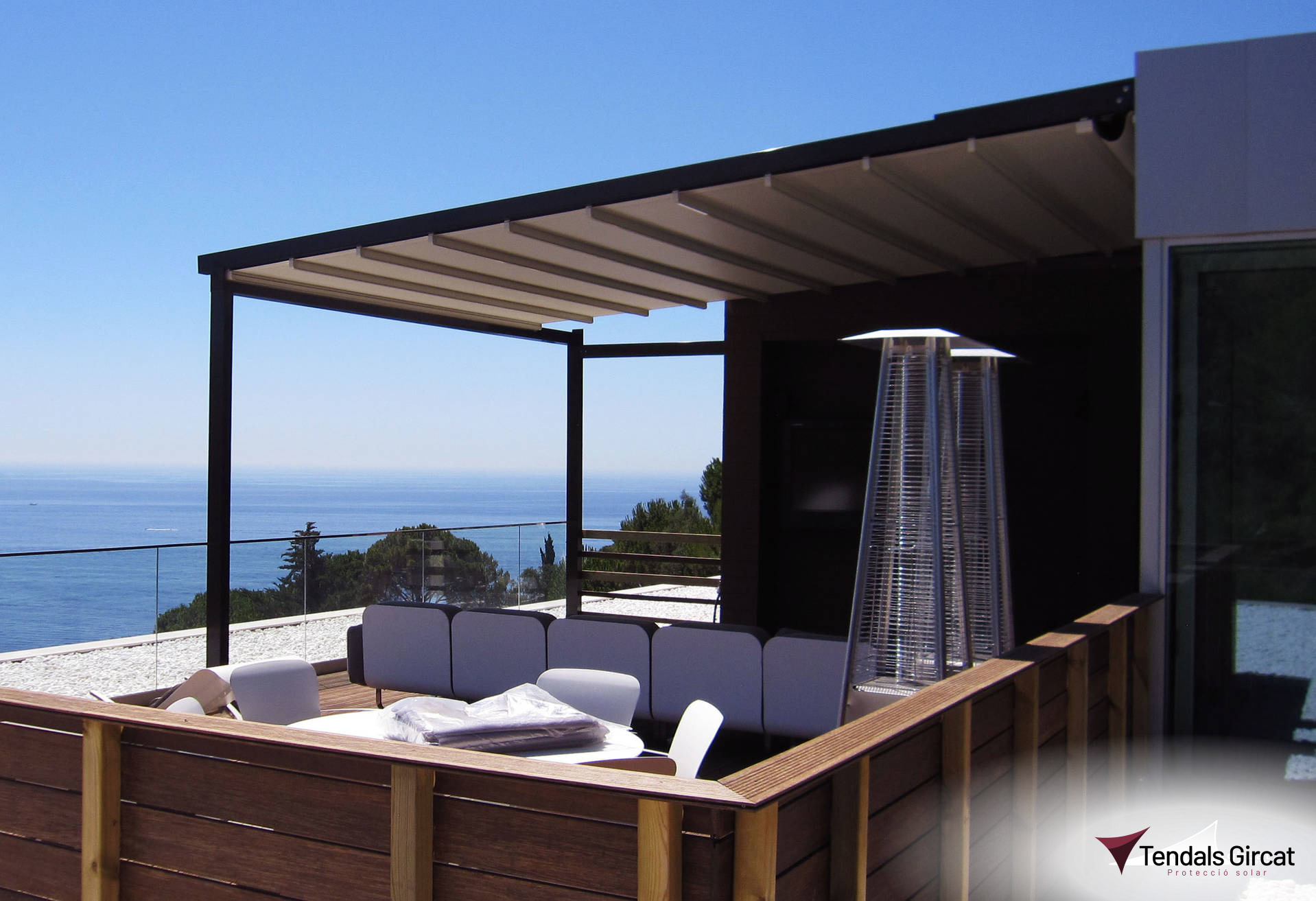

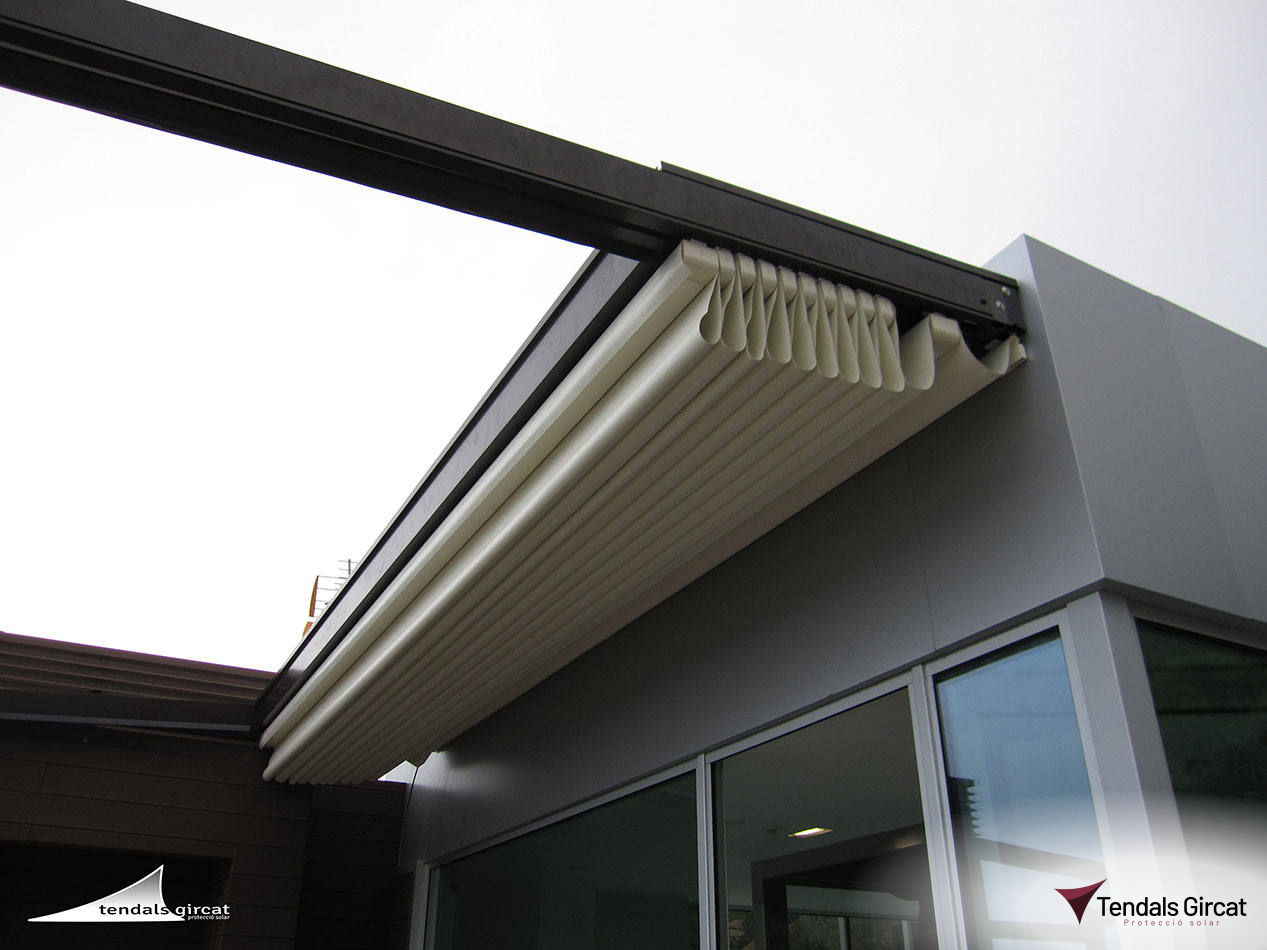

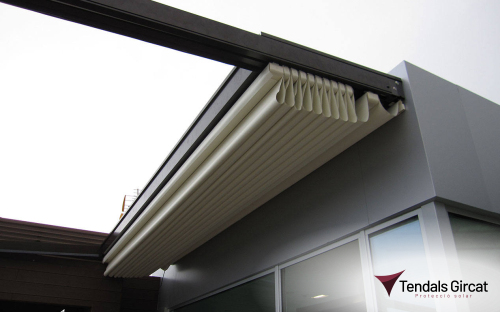

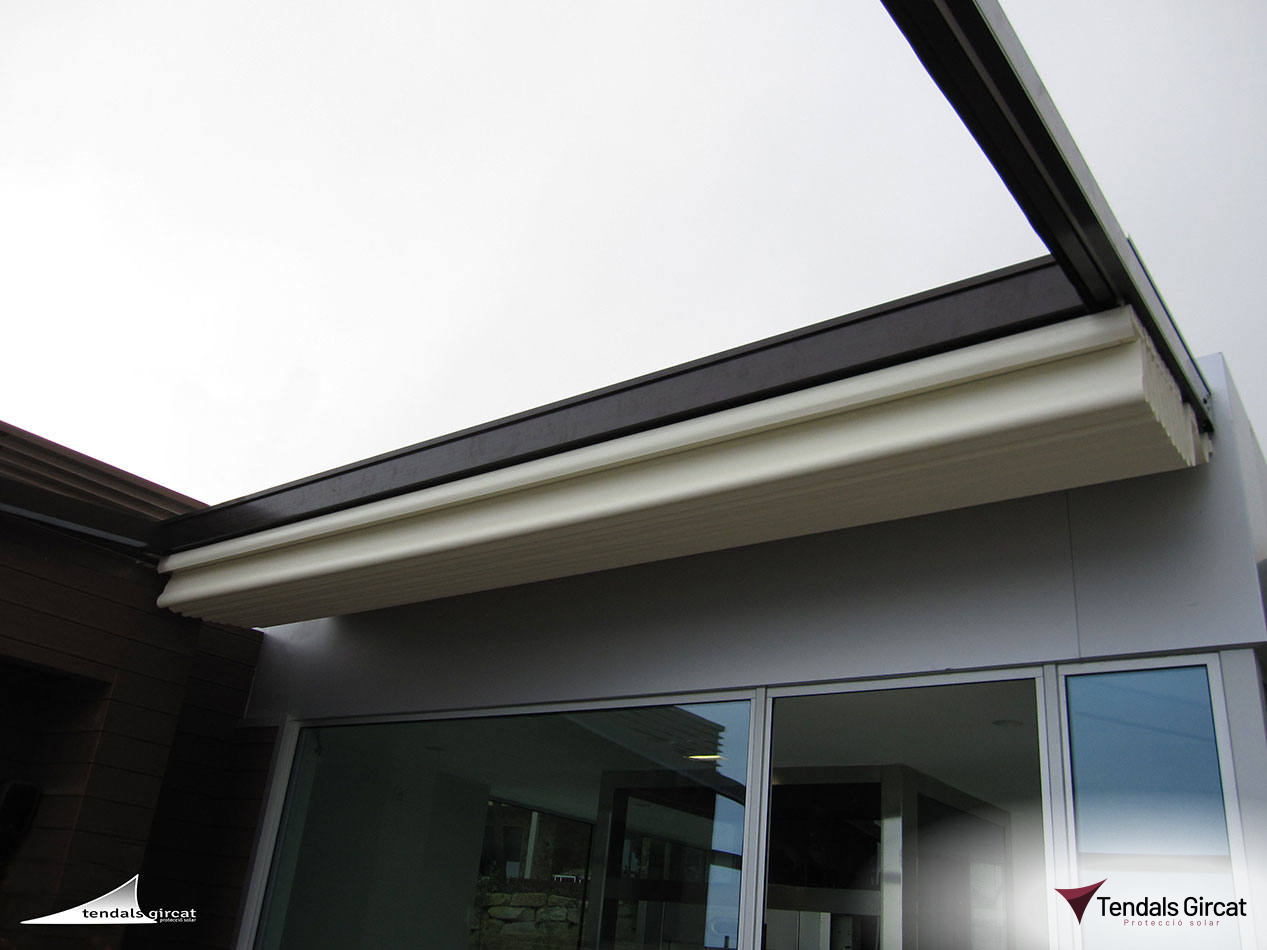

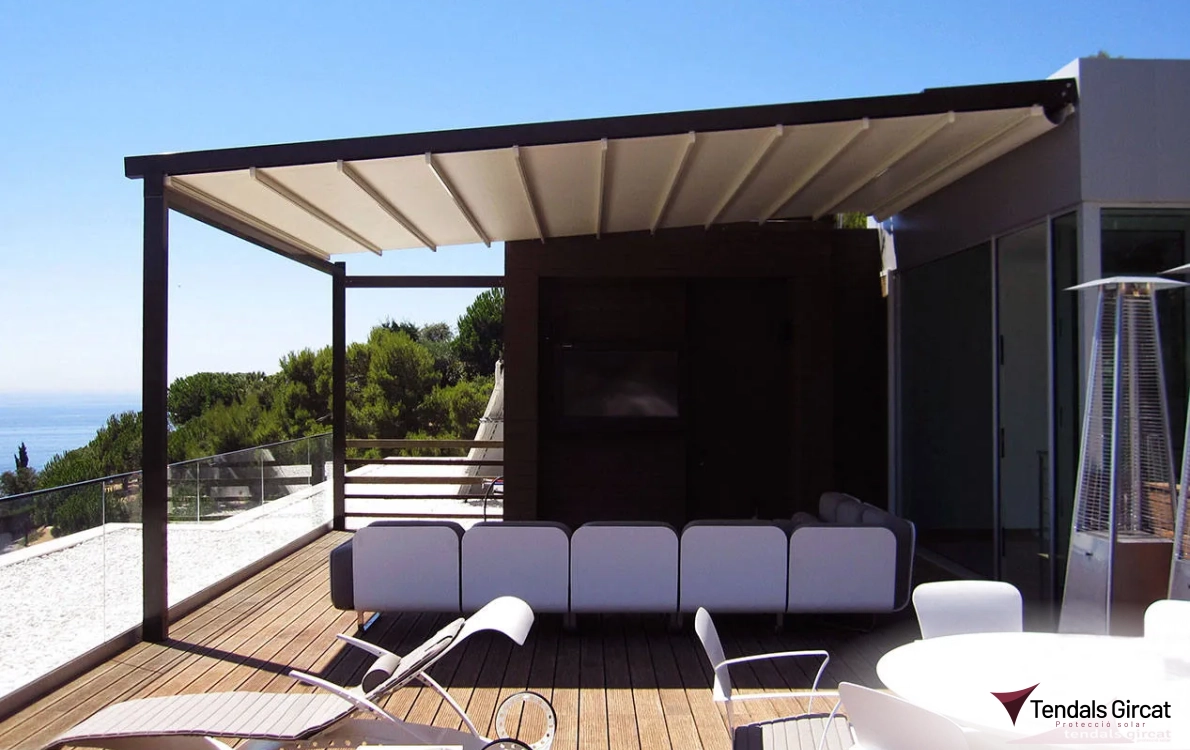

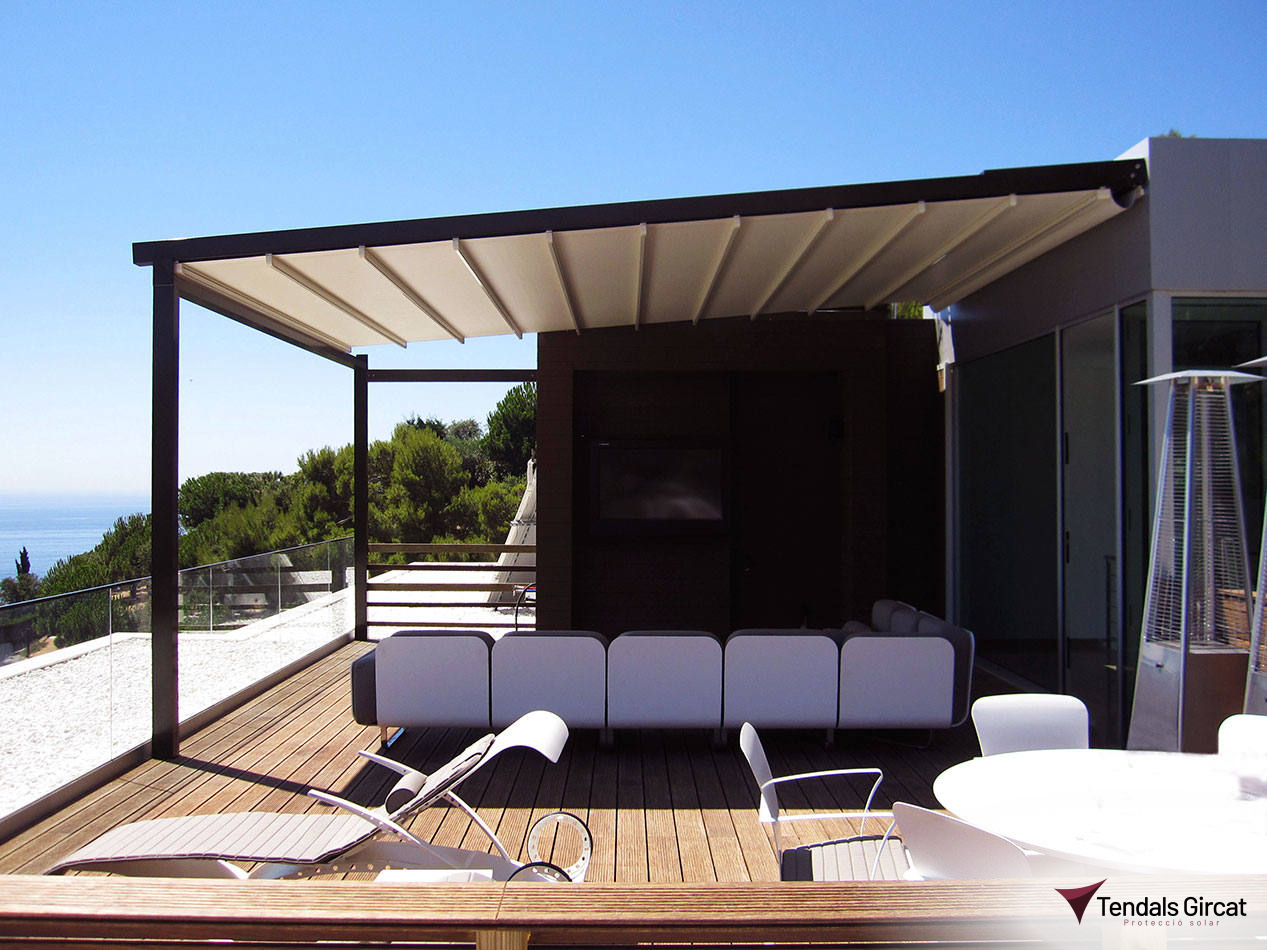

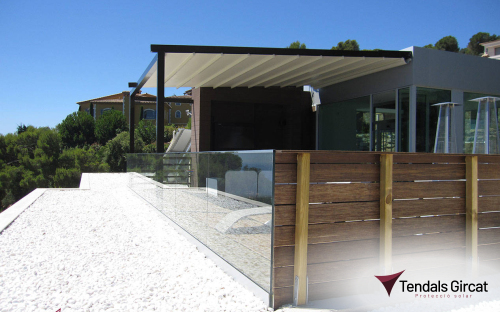

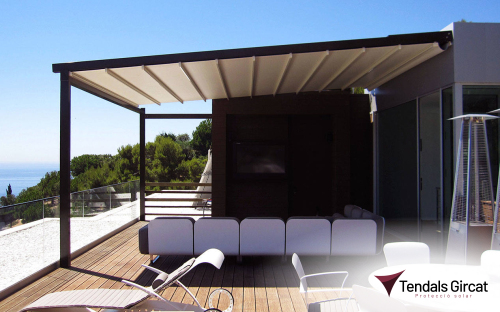

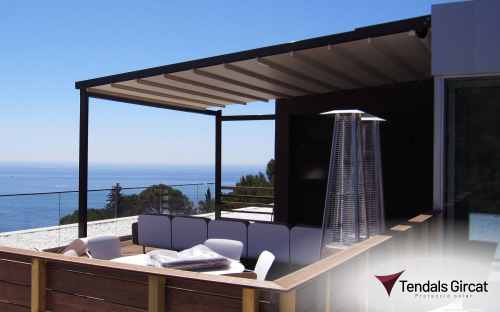

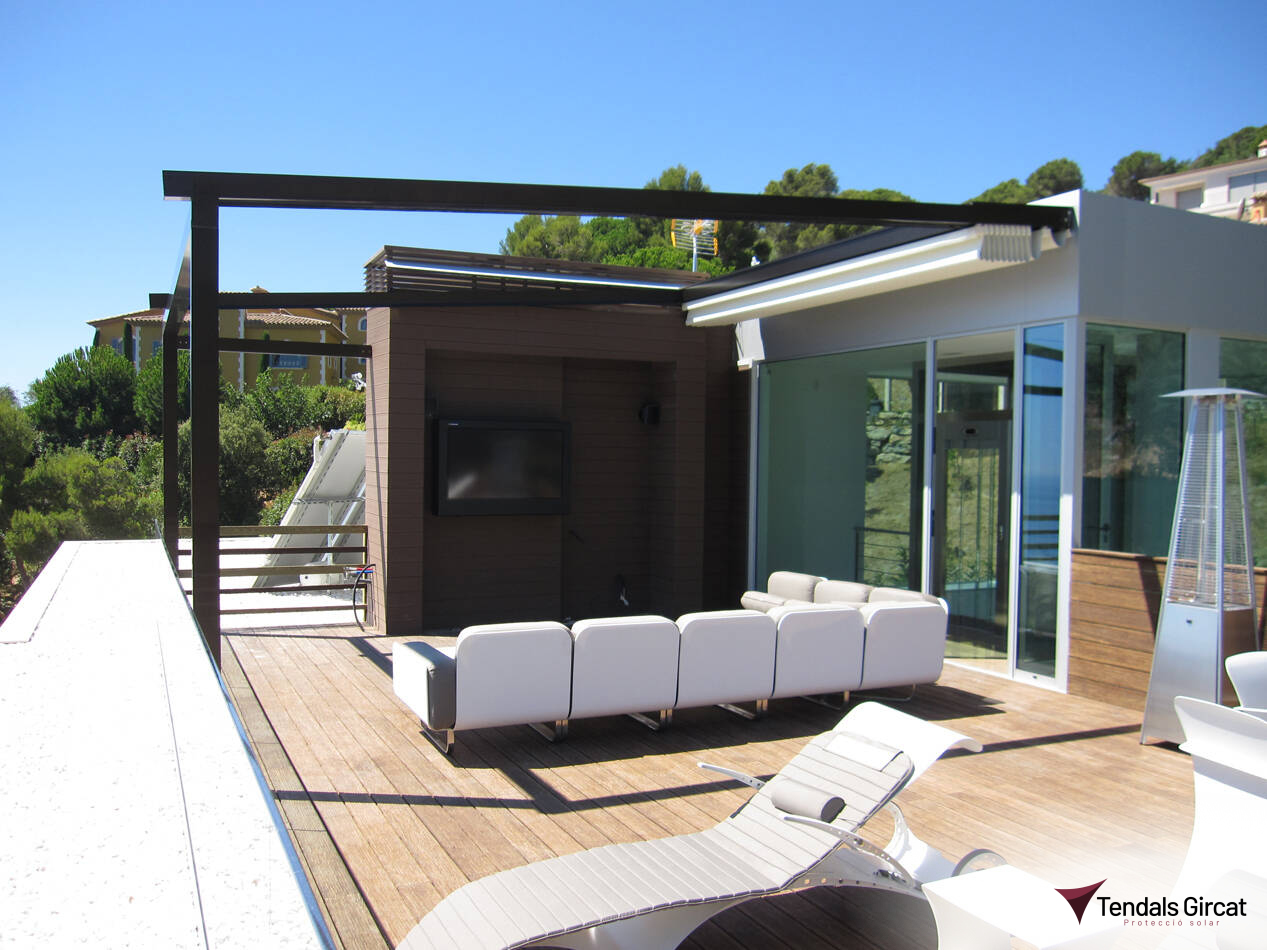

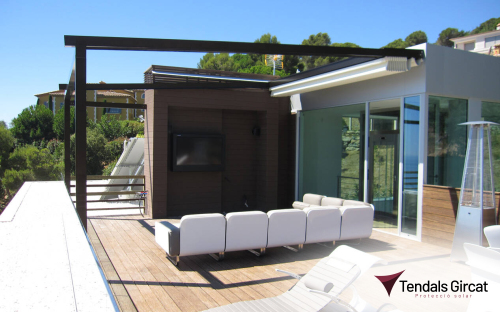

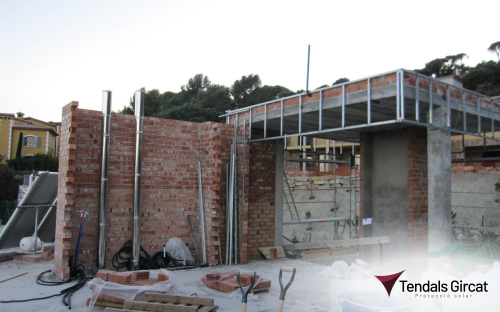

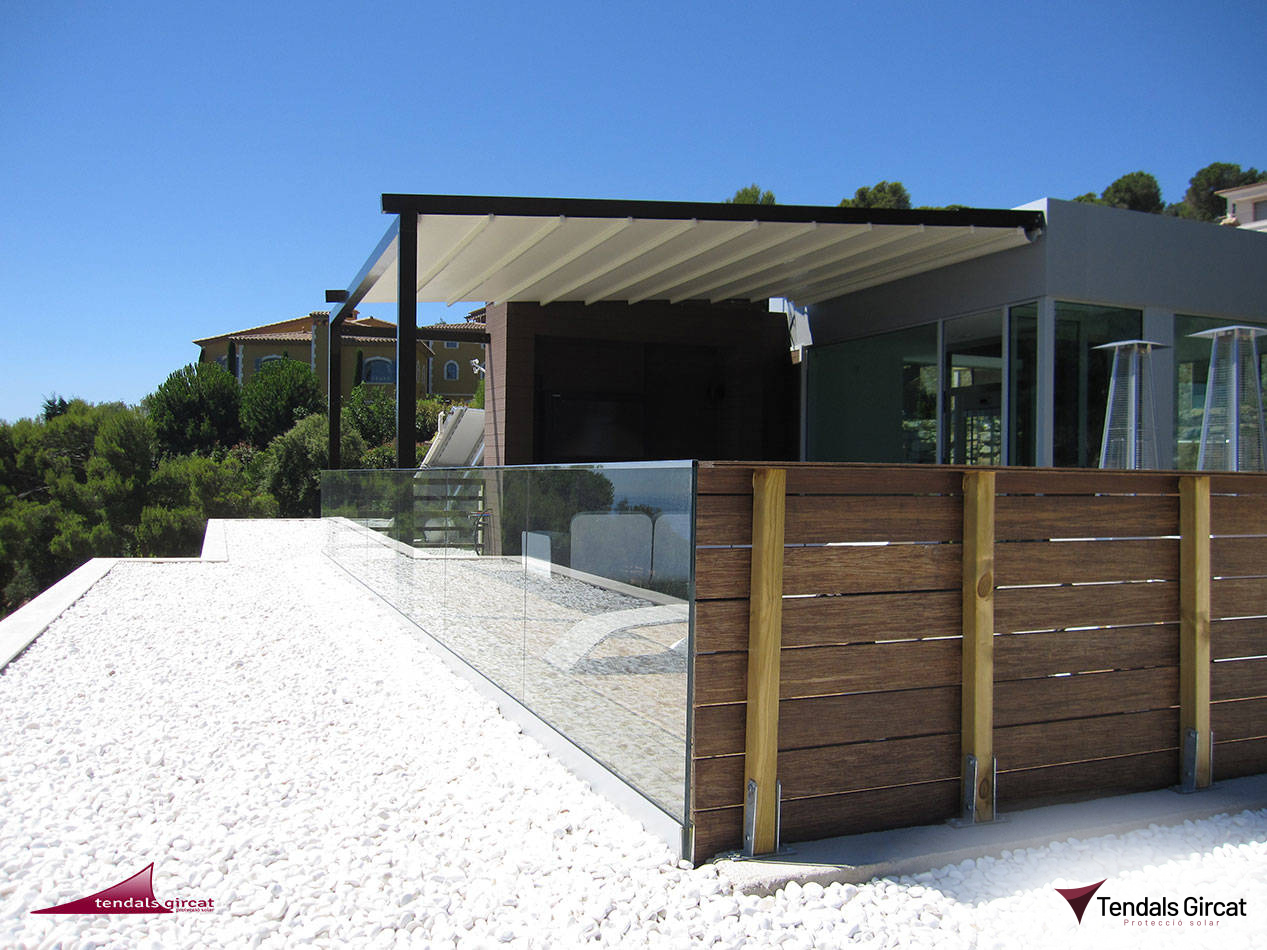

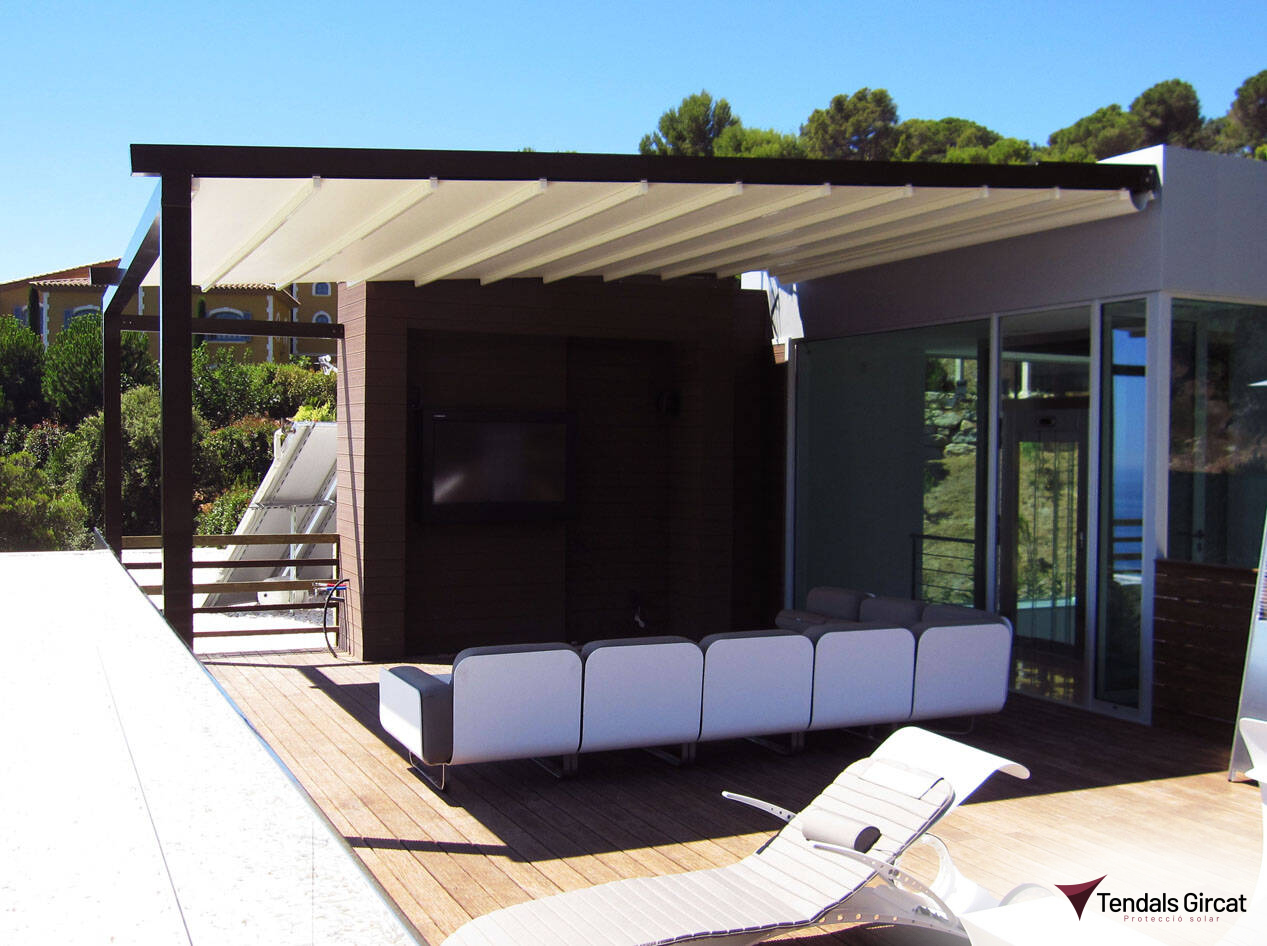

Project and installation of a Technical Pergola on a private terrace The model installed is the Gennius A2 Compact with INVER Black ral colour and with the special canvas for pre-tensioned awnings 683 PS Black Out with 95 x 130 mm struts and 130 x 140 mm front crossbar With wind resistance Class 6 according to UNI PR EN 13561. The opening and closing system is done through a toothed belt traction system inside the guides, driven by a Somfy RTS motor. Sun and wind protection systems were also installed (Soliris Sensor RTS) and all controlled through a Telis Soliris RTS remote control (Somfy) The Pergola has a triple-sheet soundproofed protective spoiler to protect it when it is collected. The entire project begins with a preliminary 3D rendering and on a plan in the construction phase of the work, adapting all the elements to what will be the final work with its measurements. The measurements are: 4.50 mts. wide x 6.20 mts. exit.
