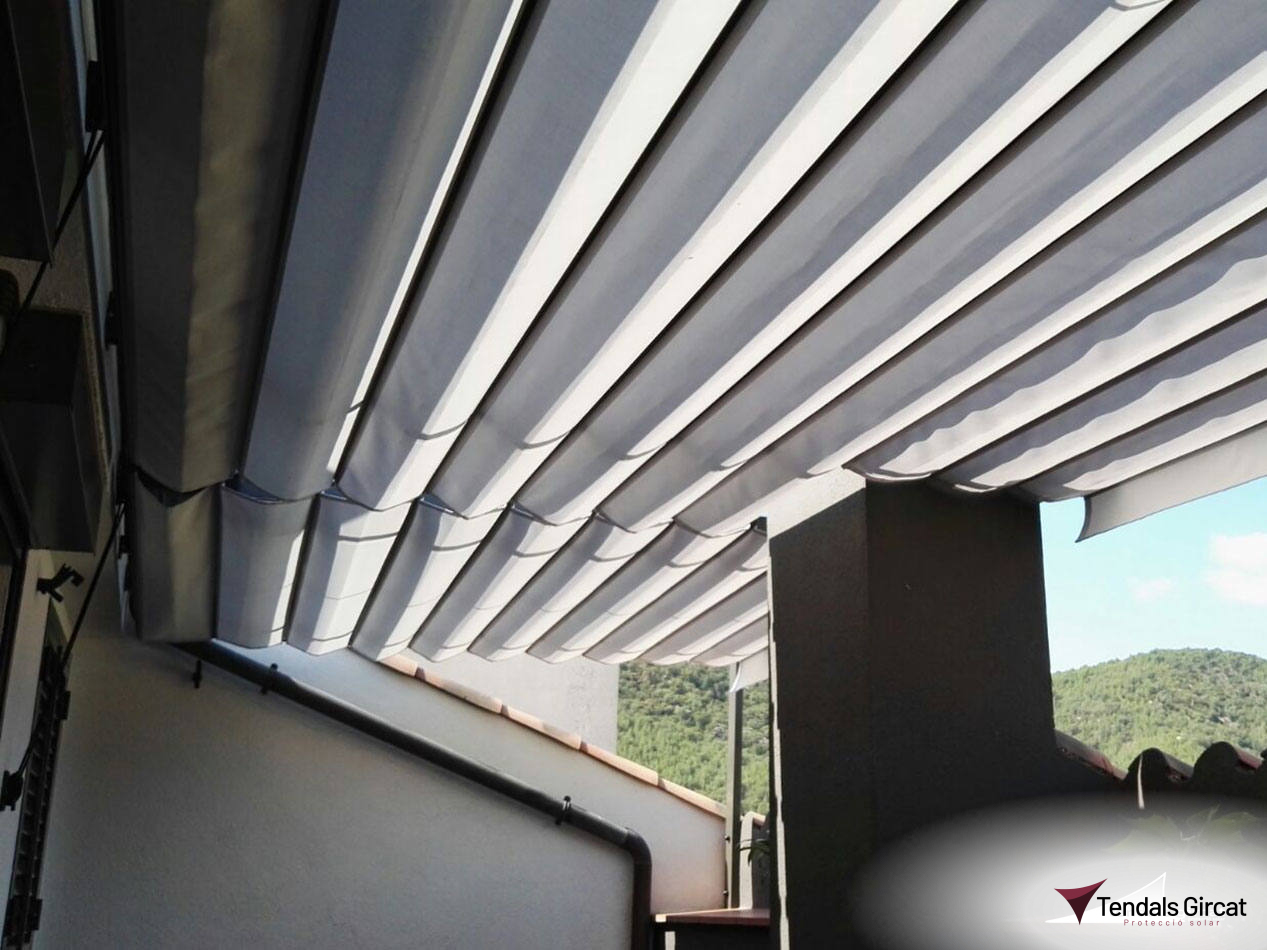

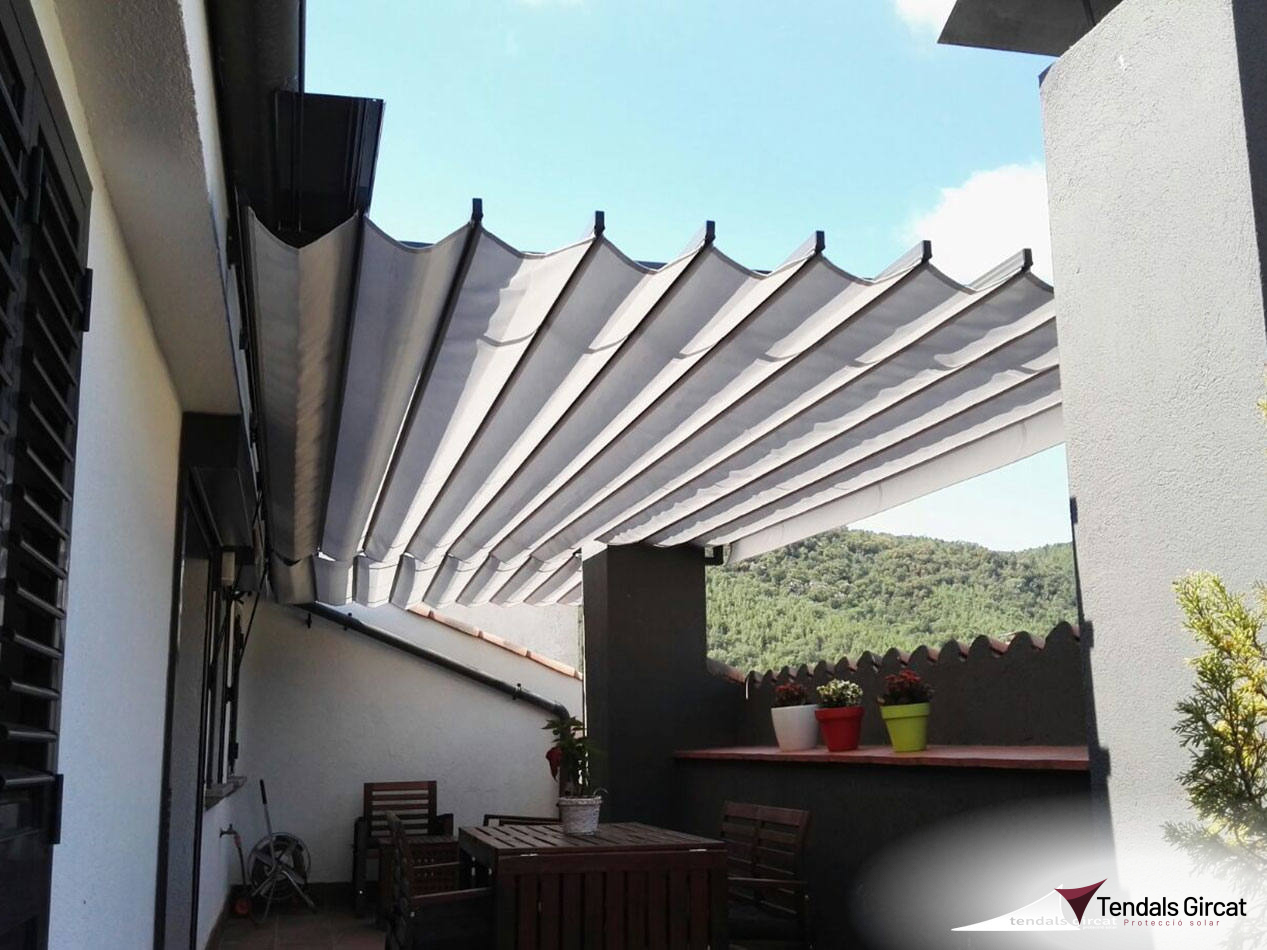

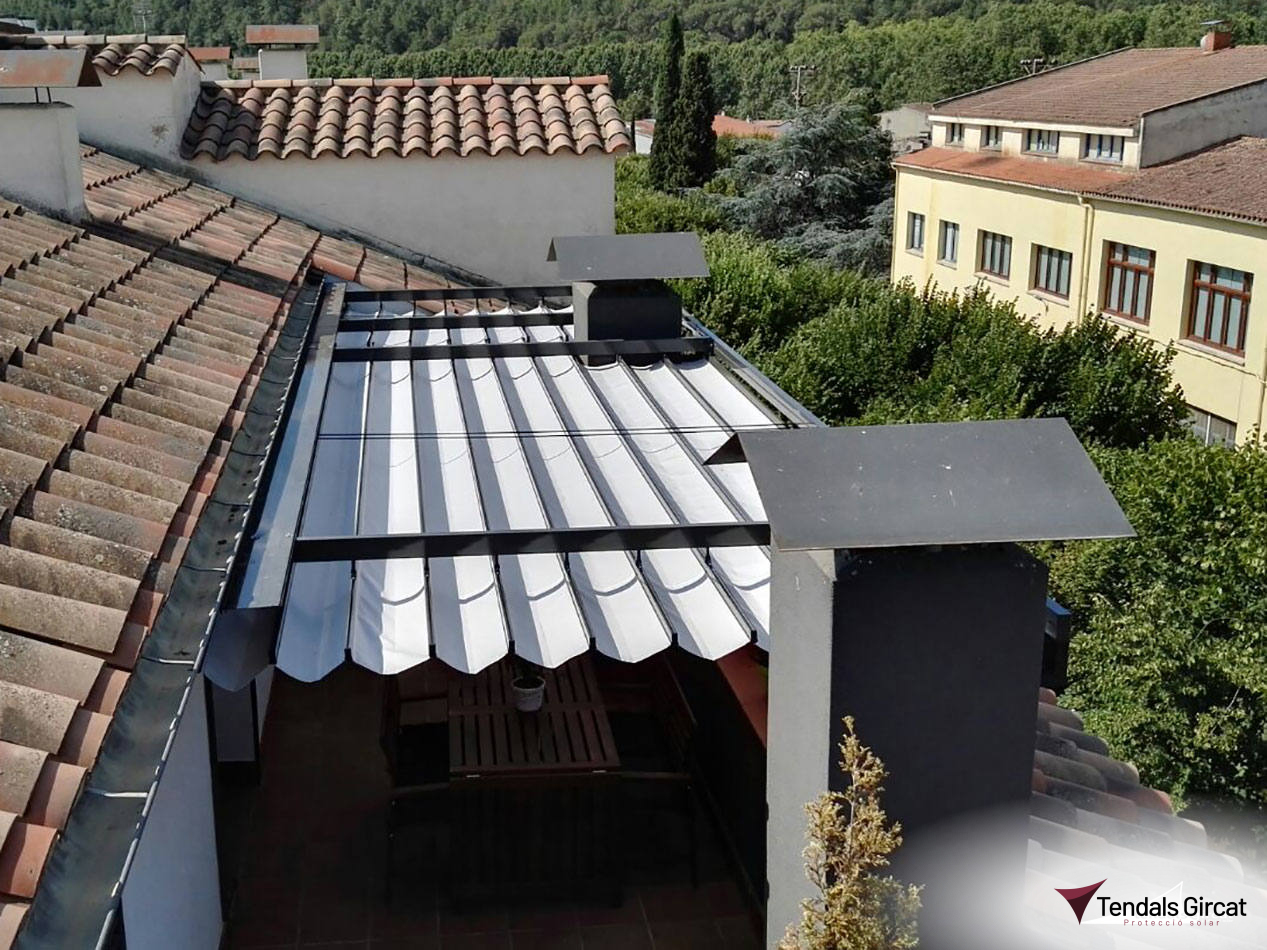

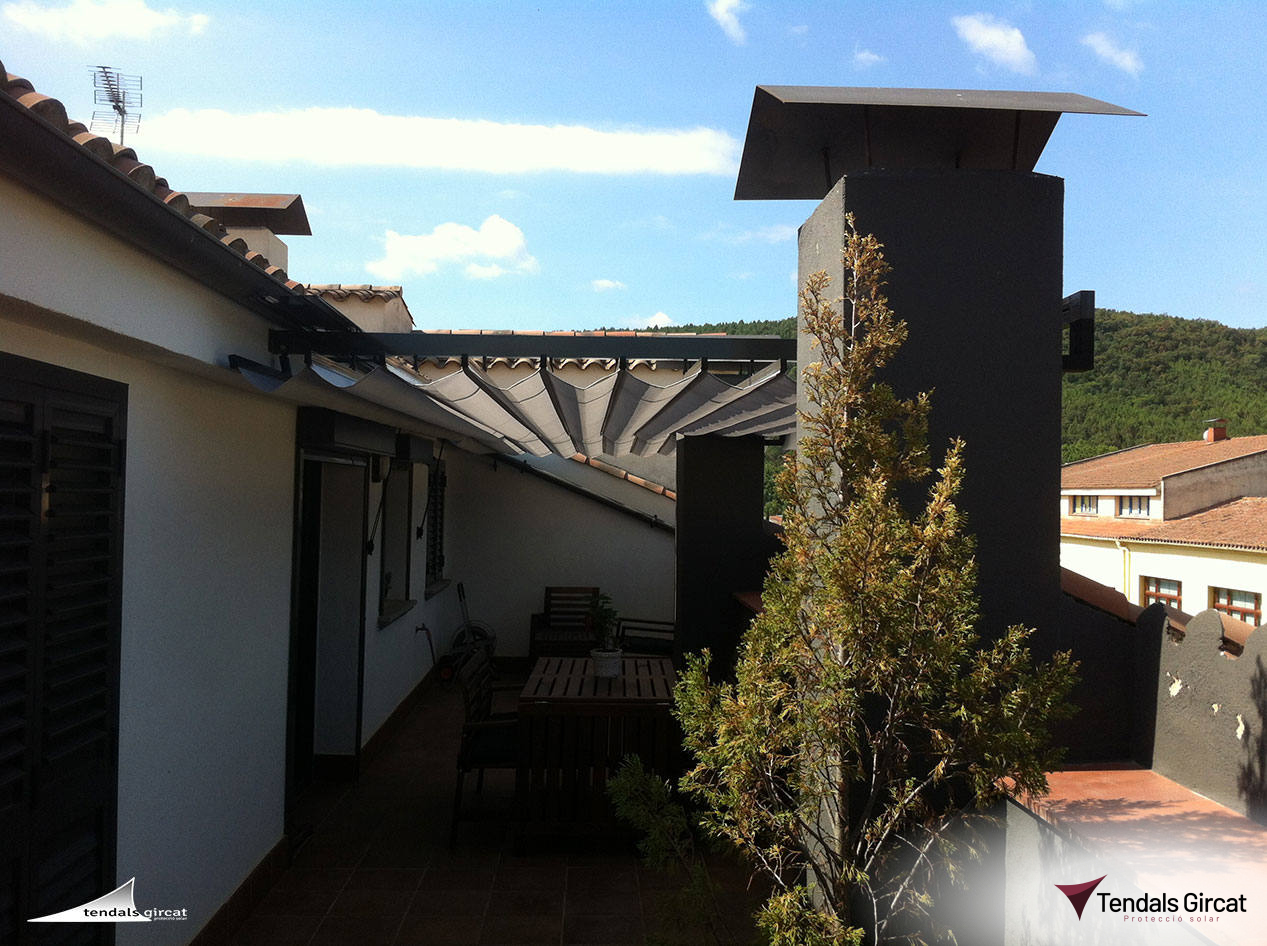

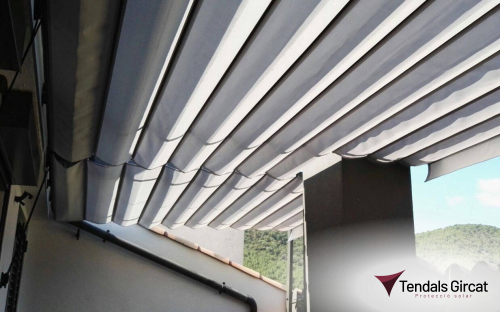

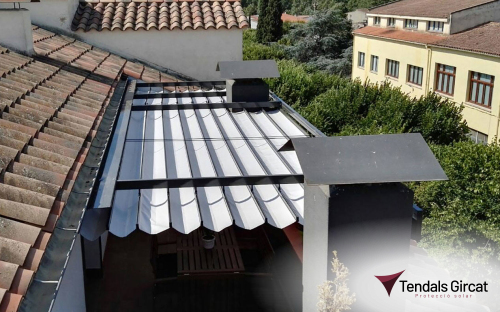

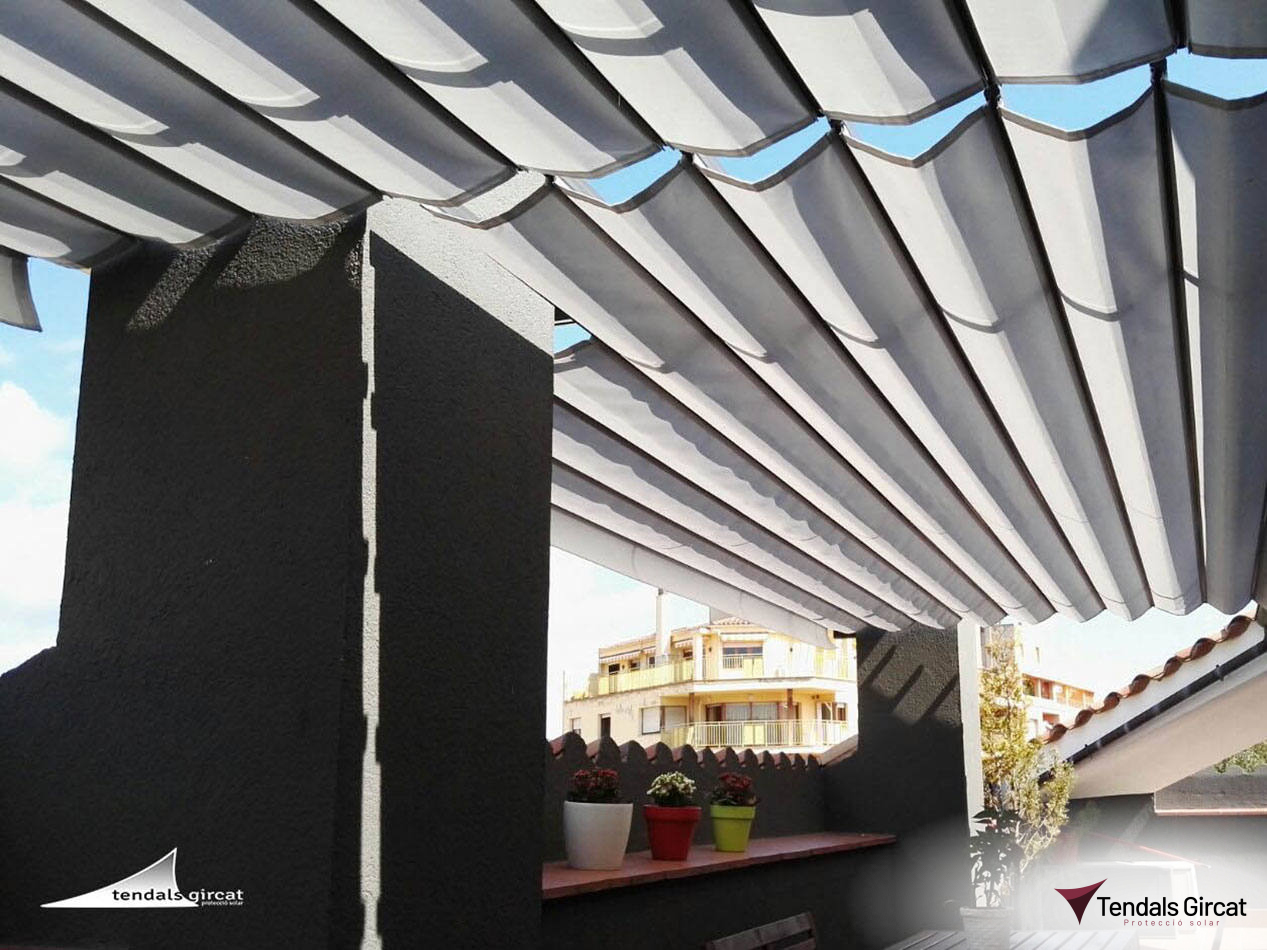

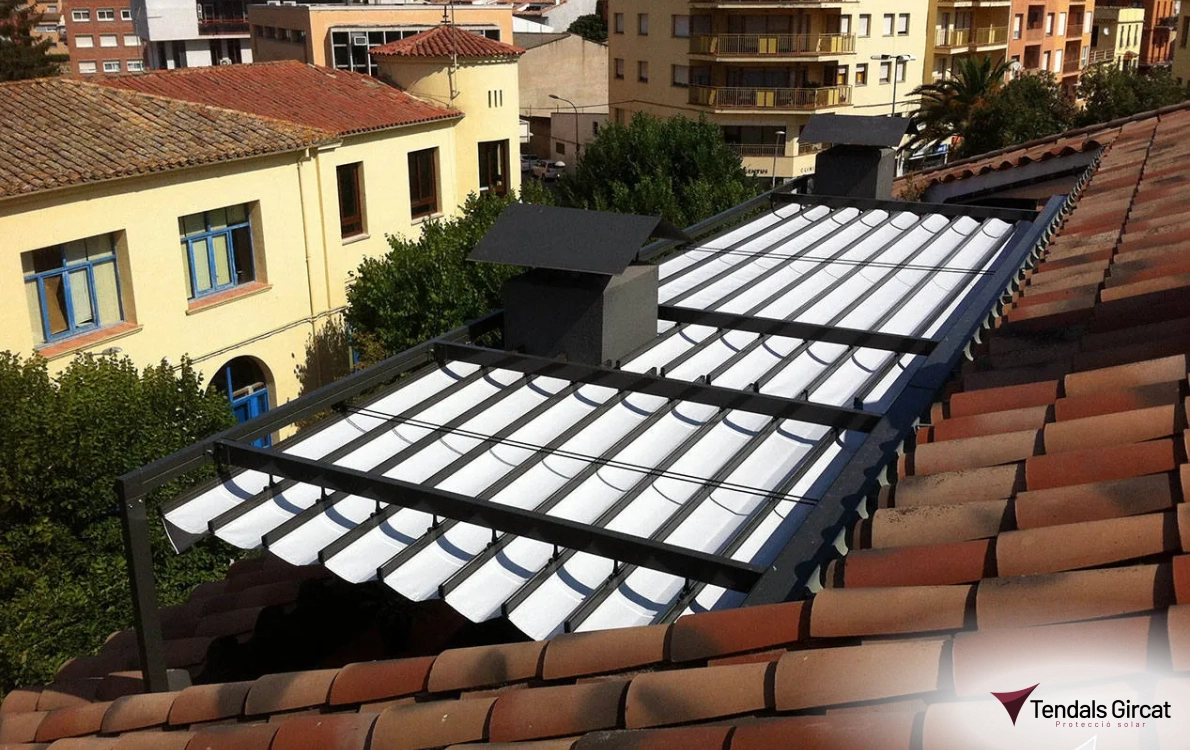

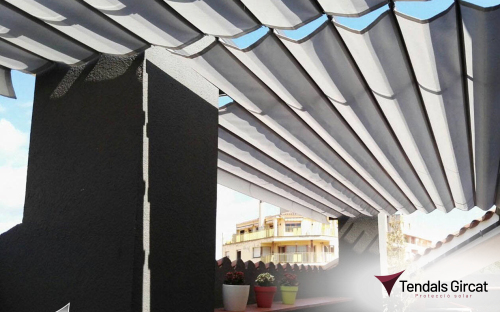

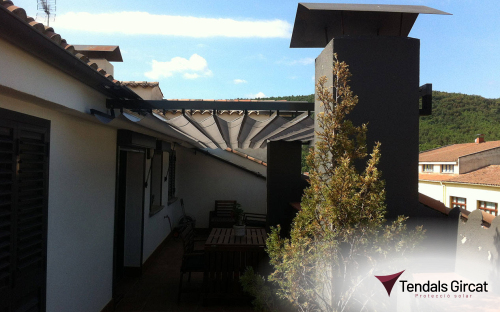

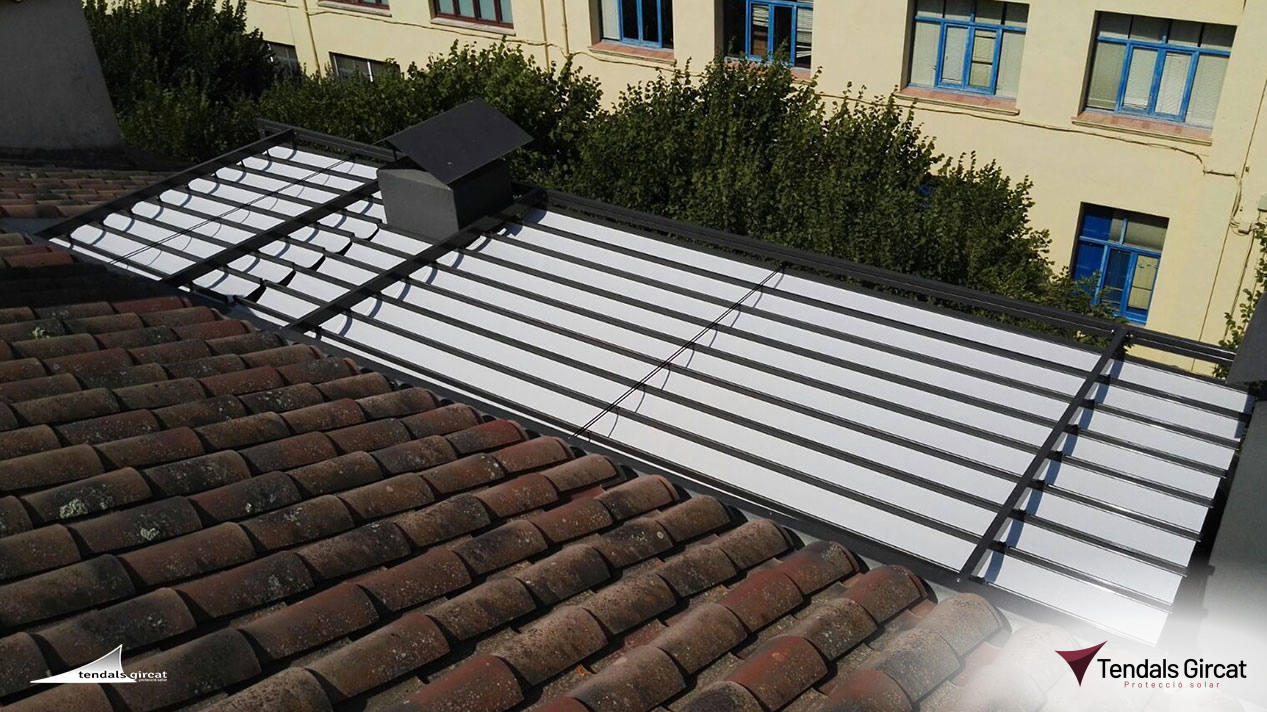

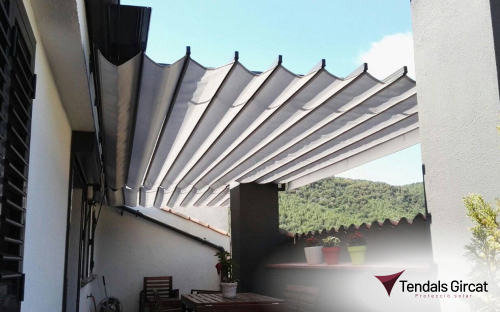

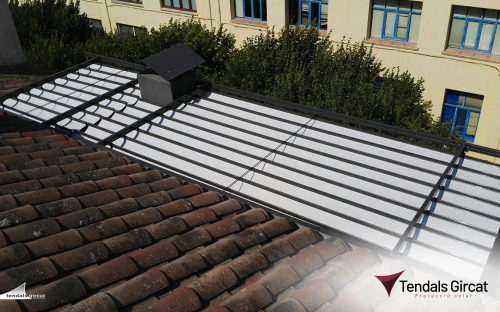

Project for covering the terrace of a penthouse with 2 sliding awnings. The central measurements of the awnings coincide with a smoke outlet and the final part of the canvas outlet is adapted to overcome this obstacle. The awnings come out just below the channel taking into account the little space there is and for this reason the canvas sheaths are made with a sufficiently small size so that once folded they are not a problem when closing the windows. The sliding awning model is Gaviota Simbac 80x40 mm with an aluminium rally col. grey 7022. The colour of the canvas is R-114 RECACRIL from Recasens. The opening and closing system is done manually with a system of ropes (col. black) and pulleys. And the displacement rollers are double height to achieve the necessary inclination for the evacuation of water in case of rain. (The Recacril canvas is waterproof) They place some protective flaps made of lacquered aluminum in the same rally, for when the awnings are closed. The measurements are: 5.00 meters wide x 2.50 meters wide (the large awning) 1.60 meters wide x 2.50 meters wide (the small awning)
