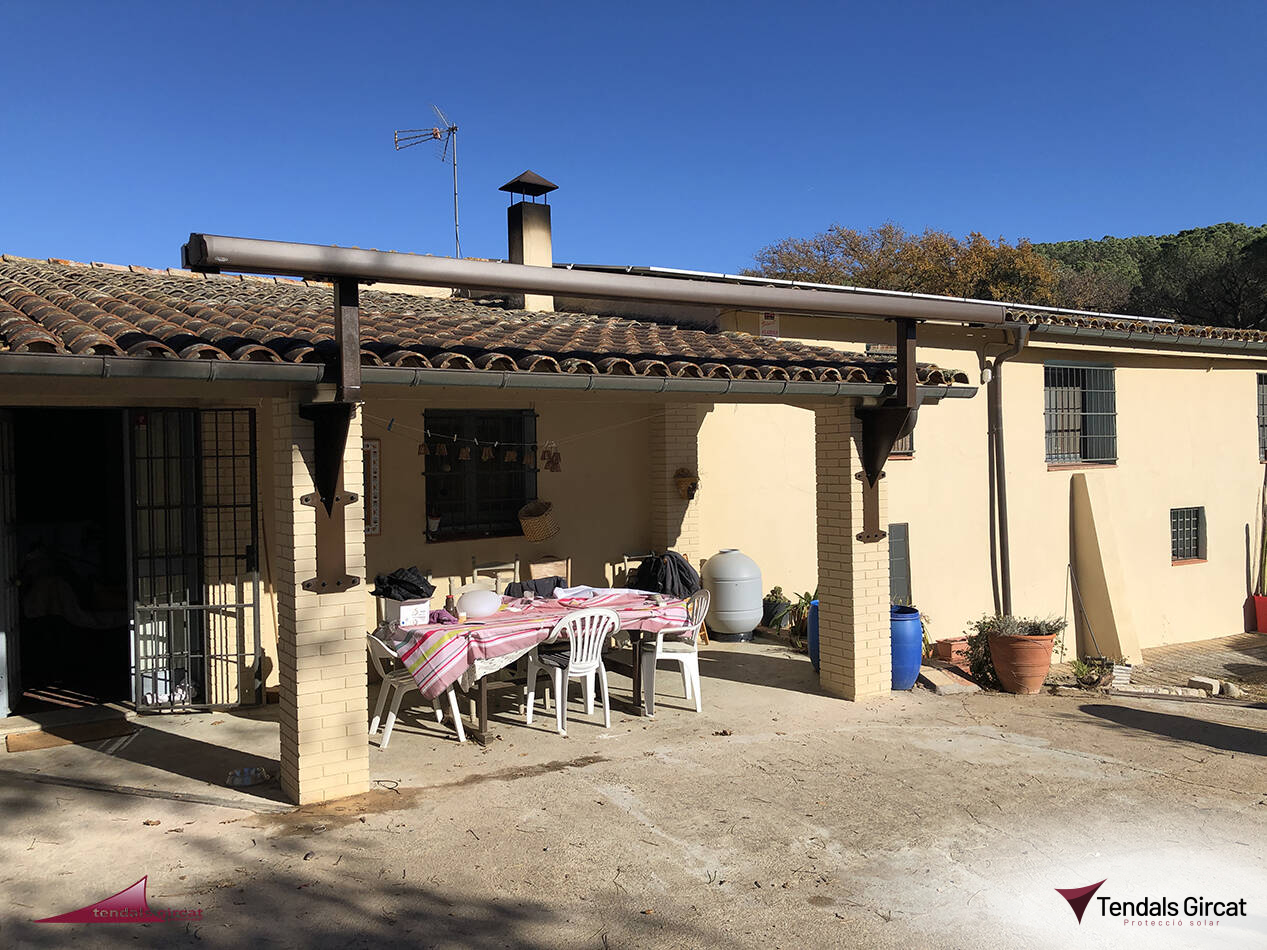

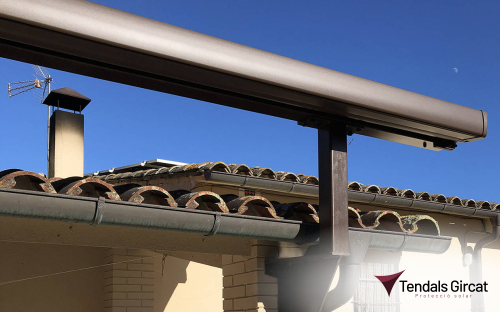

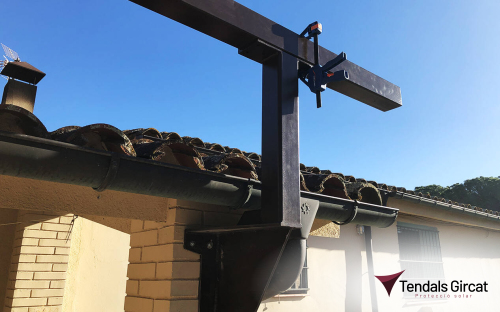

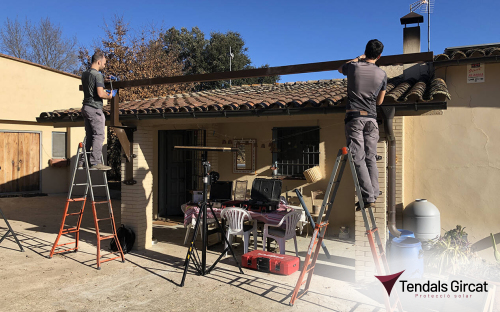

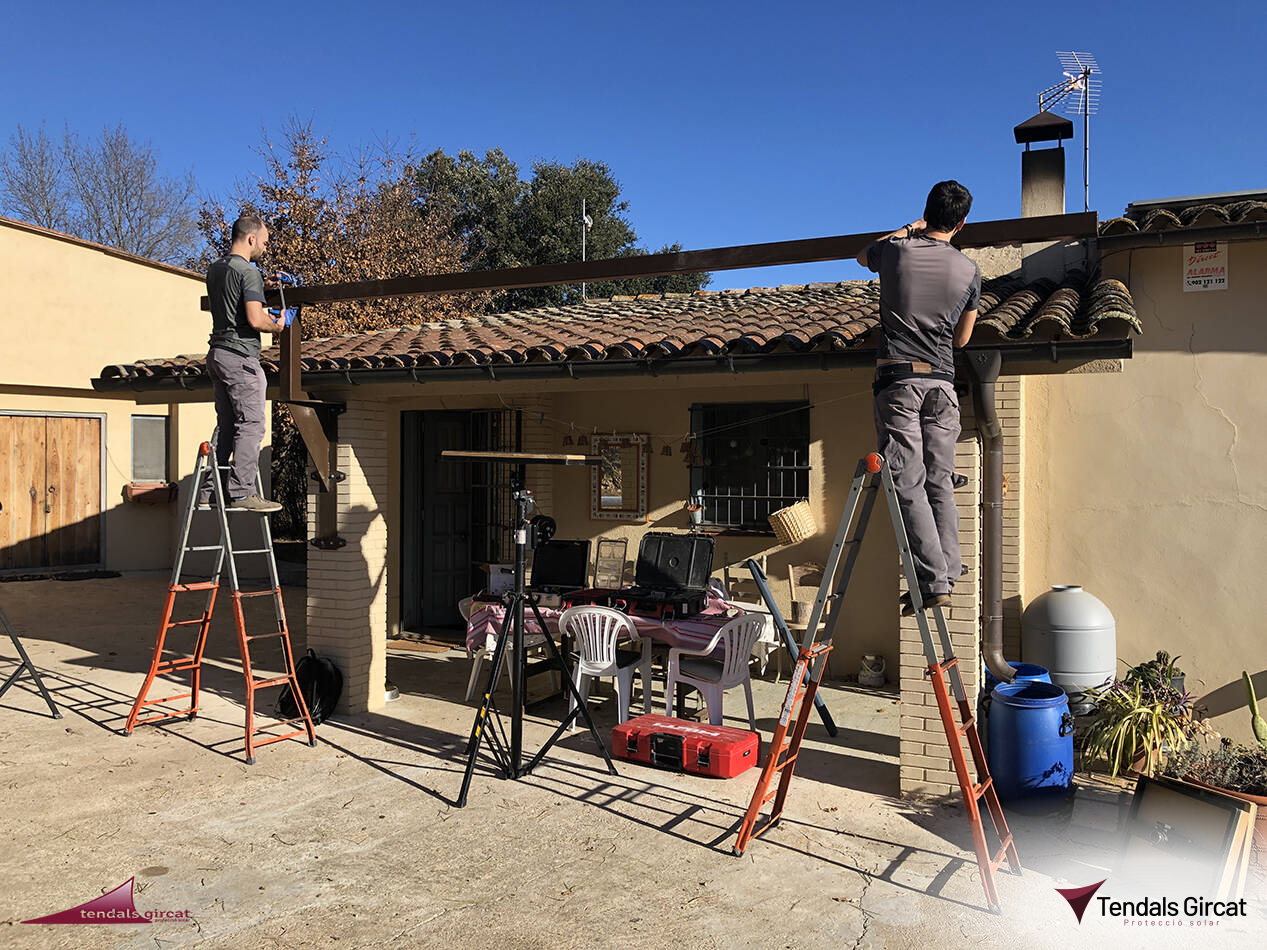

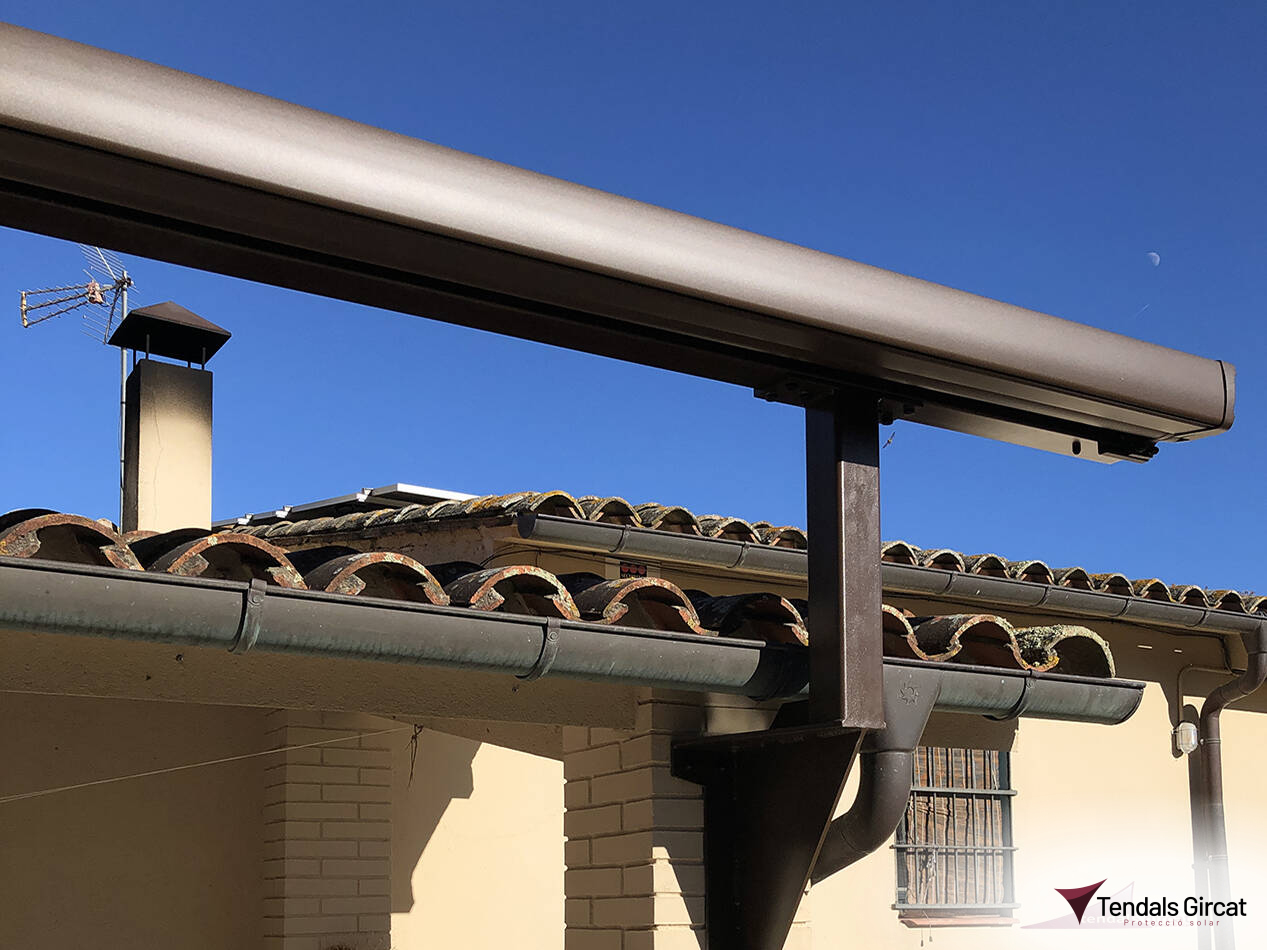

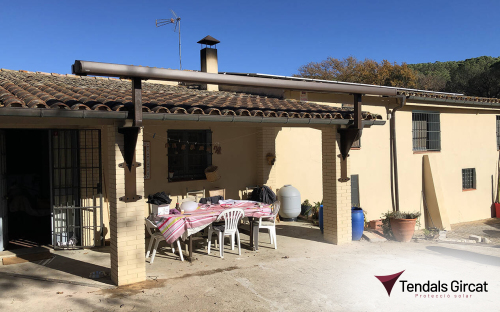

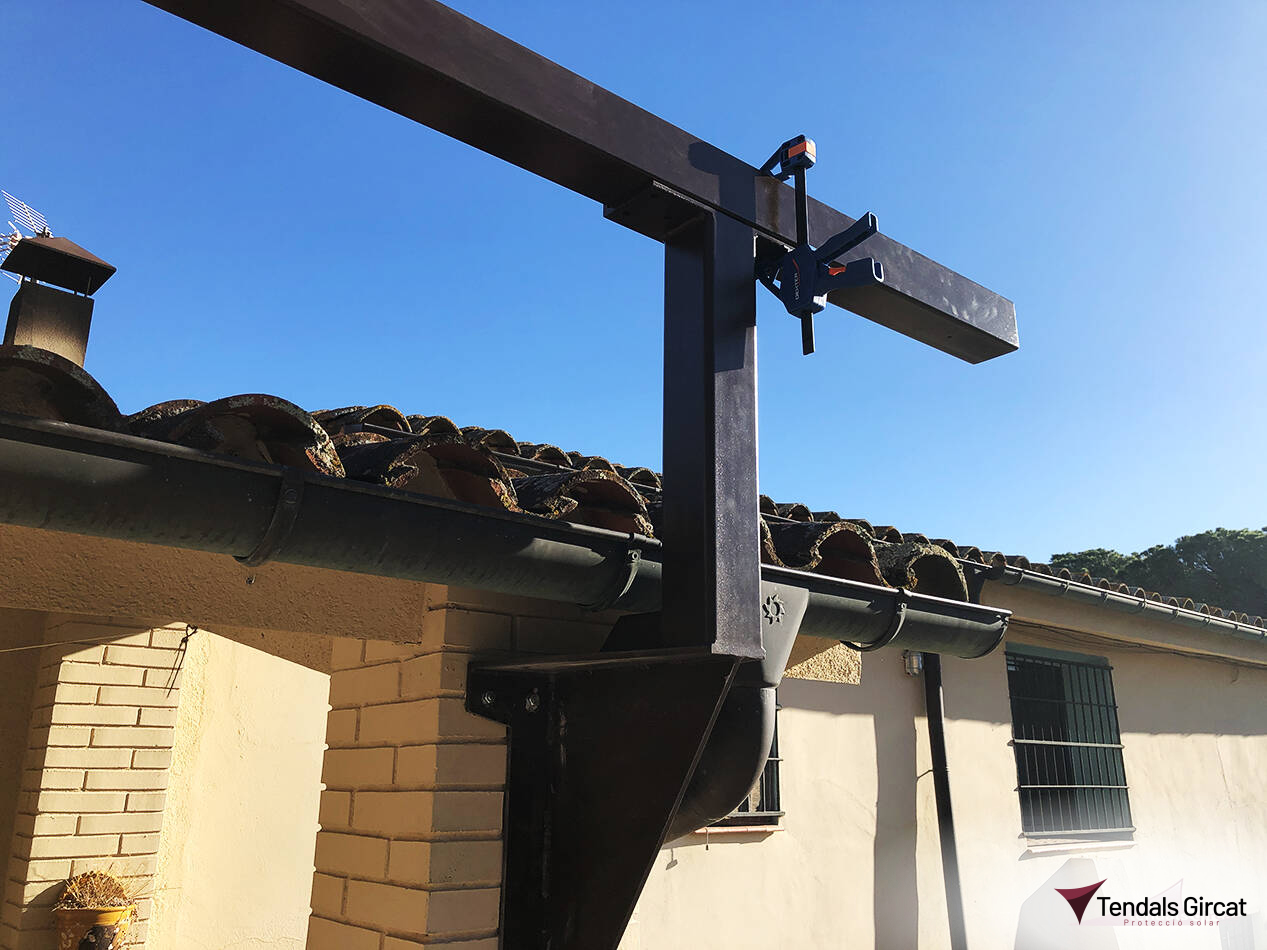

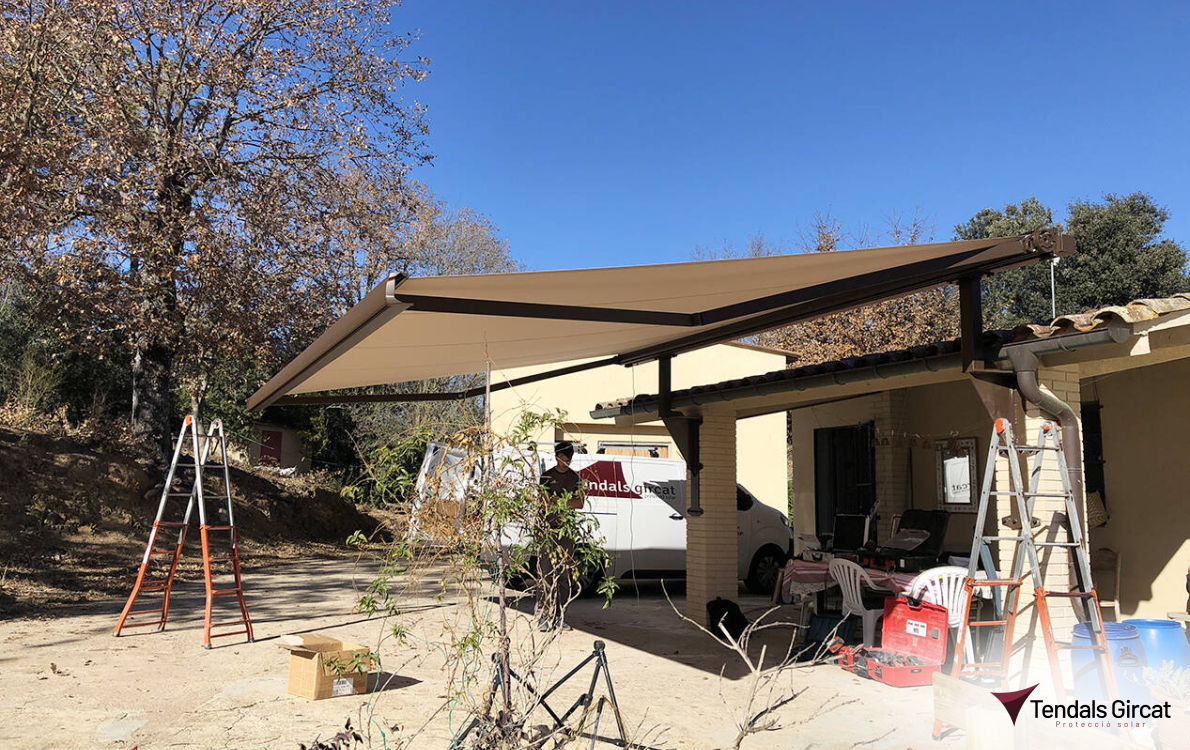

The installation of the Storbox 400 model box awning is carried out on a crossbar held by two iron plates. On this occasion we had to reinvent ourselves since the area that we wanted to cover with the awning did not allow for the proper installation, due to lack of height and fixing space. Therefore, we decided to create a structure using two plates and an iron crossbar. The two plates are fixed to the two columns of the porch, each held from 12 points with chemical dowels. On the top of the plates, a crossbar 5.50 meters wide is placed and fixed from 22 points using metric 10 threaded screws. Making this structure allows us to achieve the optimal height for the awning to function properly, since a minimum slope is necessary to evacuate rainwater. And it also allows us to obtain two fixing points to install the two awning supports. The dimensions of the awning are 5.50 m wide x 4 m long. At Tendals Gircat we always find several solutions to install your awnings and offer the best service in the region. STORBOX 400
